High precision with even, uniform lubricant coatings that remarkably improve productivity

LUBEMATE system applies lubricant coatings as fine, even films of fluid without overspraying, splashing or misting ensuring complete coverage especially for cutting tool operations with a matal stamping machine.

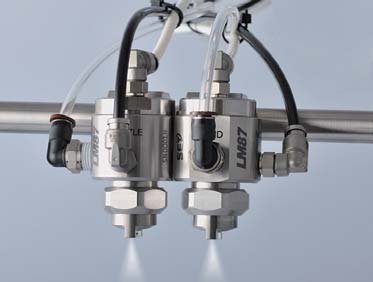

・ A very small profile spray valve, LM87 easily retrofits to existing machines

・ Increases accuracy especially for very small volumes of oil coating

・ One controller can adjust up to 8 valves

・ LM87-WF mounted on feedstock can be applied up to a maximum width of 165mm

・ Drastically reduces both production costs and lubricant consumption

・ Prolongs the sharpening period of die

Applications (high speed stamping)

・ Lead frames

・ Connector pins

・ Motor cores

・ Can end pull tabs

・ Battery components

・ Heat exchangers: forming of cooling fins

・ Automobile parts

・ Timepiece components

・ Mobile device components

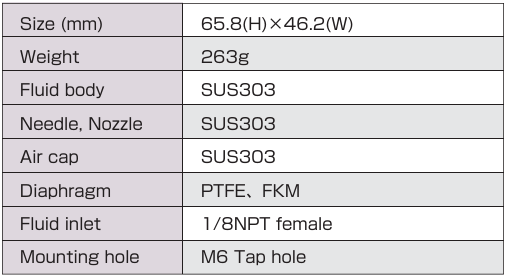

Product specification Spray LM87 series

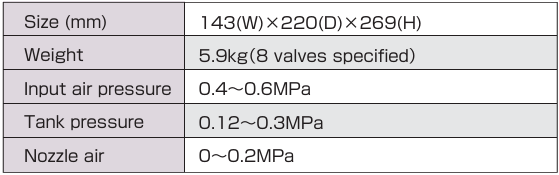

Controller LMC380

LUBEMATE System Controller LMC380

LUBEMATE System Controller LMC380 widely controls the volume of coating fluids from minute to large. The dispensed volume can be adjusted even while the system is running, which is especially advantageous for an intermittent dispensing process. One controller is capable of driving up to eight valves.

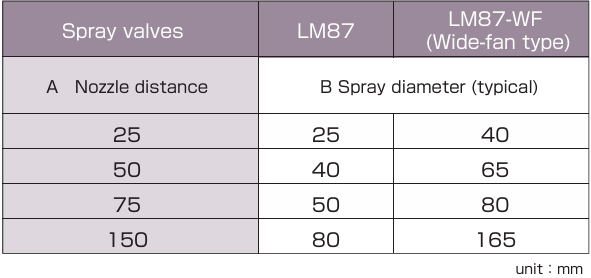

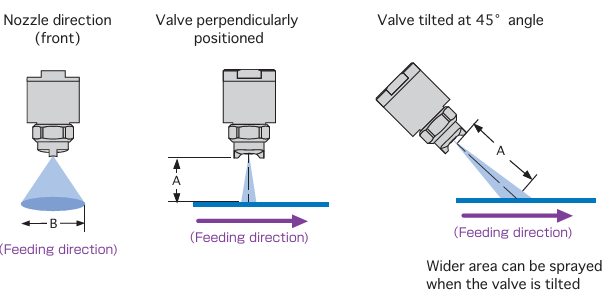

Spray Coverage Area

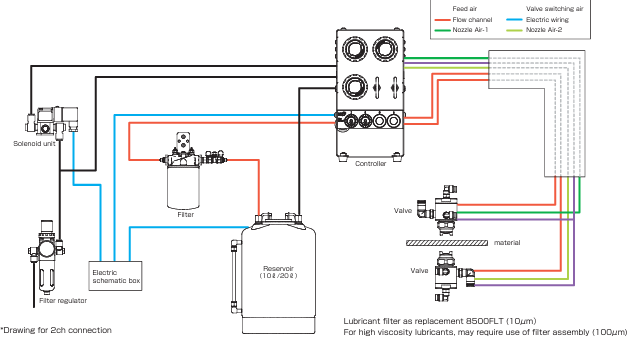

Diagram​

​
