SV91

Low volume, low pressure spray coatings enable high transfer efficiency

SV91 spray valve is designed to provide consistent coating of low to medium viscosity fluids with low volume low pressure air without causing overspray or misting. With the selection of the most appropriate nozzle, the spray quality can be perfectly controlled.

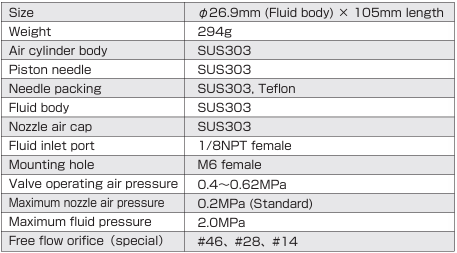

Specifications

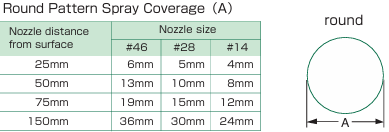

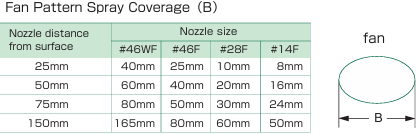

Spray Coverage Area

How the Valve Operates

nput air pressure retracts the needle from the nozzle seat, allowing fluid to flow. At the same time, nozzle air flows around the nozzle and atomizes the fluid into fine droplets. (Figure 1) Once the cycle is completed, the spring returns the piston needle back to its position to shut off the fluid. (Figure 2)

​​
