SV97MS

Low volume, low pressure air provides consistent, precise micro spray coating

SV97MS precision micro spray valve is designed to provide a uniform spray volume as small as 1nl.

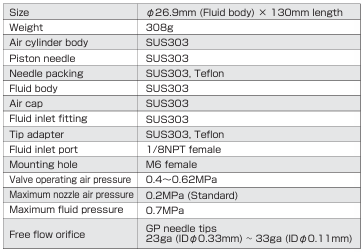

Specifications

How the Valve Operates

Input air pressure retracts the piston needle from the hub of the dispensing tip, permitting fluid to flow. (Figure 1) Once the cycle is completed, the spring returns the piston needle back to its position in the dispensing tip to shut off the fluid. (Figure 2).

​
