SV47

High pressure spool valve for applying a neat bead of sealant and grease

SV47 is an air-operated, balanced spool valve for consistent dispensing of industrial sealants, silicones and greases at input pressures up to 17.2MPa.

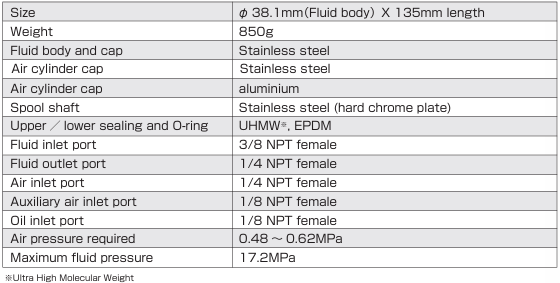

Specifications

How the Valve Operates

Input air pressure retracts the spool shaft, allowing fluid to flow. (Figure 1) Once the cycle is completed, the spring returns the spool shaft back to its original position to shut off the fluid. (Figure 2)

​
