SV35HF

Fast and accurate filling process for low to high viscosity fluids

SV35HF piston valve is designed to consistently dispense middle to high viscosity materials SV35DA by achieving a higher and smoother flow rate rather than SV35DA, featuring a fast, clean cut-off that prevents dripping and drooling and excels in precision filling applications.

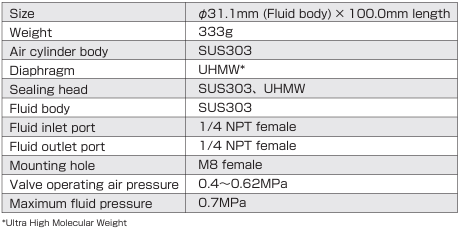

Specifications

How the Valve Operates

Input air pressure forces the sealing head to move down, permitting fluid to flow. (Figure 1) Once the cycle is completed, the spring retracts the piston and the sealing head closes to shut off the fluid and pull back a slight amount of fluid to clearly cut it off. (Figure 2)

​
